Automated Scanning and Weighing Line(DWS)

Four indicators: Small footprint, wide application range, labor force reducing, high efficiency


Automated scanning and weighing line: it's used at the inbound and outbound ends of parcels on each sorting conveyor belt, with camera installed for data identification and automated vulnerability scanning. The camera also can  read barcode, weigh the parcel through the automated weighing scale and measure parcel dimension. Parcel scanning and weighing status (normal parcel or abnormal parcel) will be known after the system interchanging information with customer system. Normal parcels will directly pass through the automatic scanning and weighing system, but abnormal parcels after automatic weighing scale will be pushed aside by partition for sorting operator to check and handle it.


The automated scanning and weighing system greatly reduces manual checking workload, and improves sorting efficiency, also cuts down the time and labor cost. Thus this package sorting machine plays an important role and means a lot in parcel sorting.

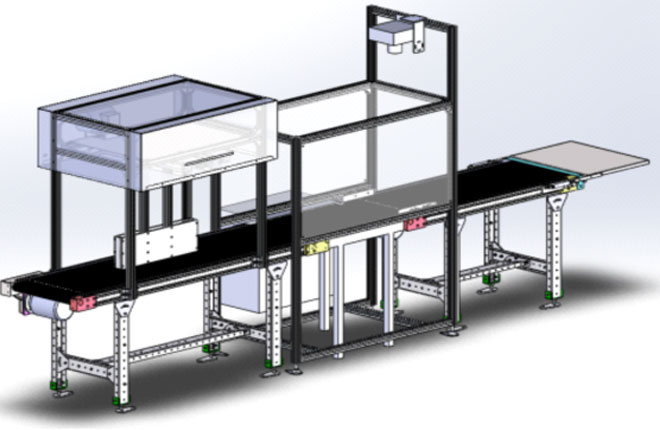

  • Automated Scanning And Weighing Line(dws)

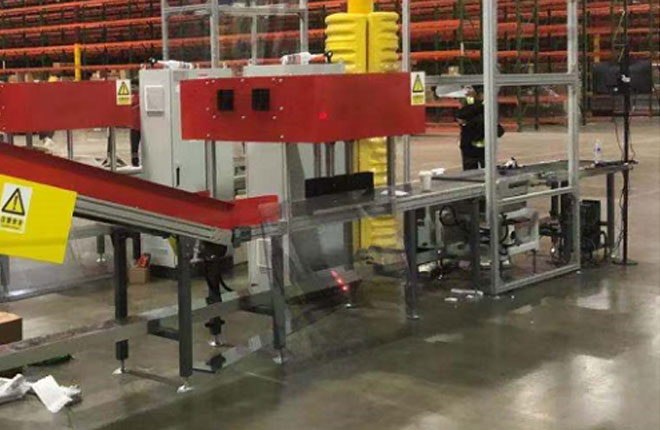

  • Automated Scanning And Weighing Line(dws)
  • Automated Scanning And Weighing Line(dws)
  • Automated Scanning And Weighing Line(dws)

Specification of Small Parcel DWS

No.

Item name

Parameter

1

Overall dimension

Width4800mmXLength1300mmXHeight1000mm

2

Power supply

Single phase220V Power1.43KW

3

Conveying line speed

0.6—1.0M/S(adjustable)

4

Efficiency

Theoretical efficiency up to 6000pcs/hr,actual efficiency 2000~3600pcs/hr

5

Barcode reader

HIKVISION/DATALOGIC/SICK/COGNEX(customizable)

6

Dynamic scale

Weighing range: 10g – 6Kg Weighing precision:±2g,±5g,±10g

Maximum parcel size:Length400mmxWidth320mmxHeight250mm

7

Dimension measuring

Minimum parcel size: Length100mm xWidth60mm xHeight1mm

Measuring precision:±10mm(HIKVISION)/ ± 5mm(datalogic/SICK)


Specification of Large Parcel DWS

No.

Item name

Parameter

1

Overall dimension

Width4000mmXLength1300mmXHeight1500mm,angle 14 (customizable according to actual need)(Optional removing device, push plate, turntable, transfer conveyor can be added, or coordinating with sorter module)

2

Power supply

3phase380V Power4.1KW

3

Conveying line speed

0.6——1.5M/S(Adjustable) Geared motor :SEW 1.1KW/1.5KW

4

Efficiency

1800~3600pcs/hr(customizable)

5

Barcode reader

HIKVISION/DATALOGIC/SICK/COGNEX(customizable)

6

Plane dynamic scale

Weighing range: 300g – 60Kg Weighing precision:±10g,±20g,±60g(customizable)

Maximum parcel size:Length1000mmxWidth700mmxHeight700mm

7

Dimension measuring

Minimum parcel size: Length200mm xWidth100mm xHeight100 mm

Measuring precision:±10mm(HIKVISION)/ ± 5mm(datalogic/SICK) (customizable)


Advantages of Automated Scanning and Weighing Line(DWS)

  • Linear design, compact structure, small footprint, much space saving

  • Wide application range, applicable for various goods with different sizes, shapes and natures, lower than 10kg, including very small and thin ones

  • Extremely low running noise

  • Low operation and maintenance cost. And this materials handling system is easy and safe to operate.


Advantages of Automated Scanning and Weighing Line(DWS)

Application Industries of Small Parcel DWS

  • Cross-border e-commerce industry

  • Express industry

  • Postal industry


Application Scenarios of Small Parcel DWS

The fuction of small parcel DWS is similar with quick sorter. Small parcel DWS is often applied in cross-border e-commerce, postal small packet service, warehouse inbound/outbound auto barcode reading, weighing and dimension measuring.


Application Industries of Large Parcel DWS

  • E-commerce industry

  • Express industry

  • Cosmetics industry


Application Scenarios of Large Parcel DWS

Applicable for small packet in e-commerce express industry, warehouse inbound/outbound auto barcode reading, weighing and dimension measuring.
