Four-way Box Shuttle

Four-way Box Shuttle

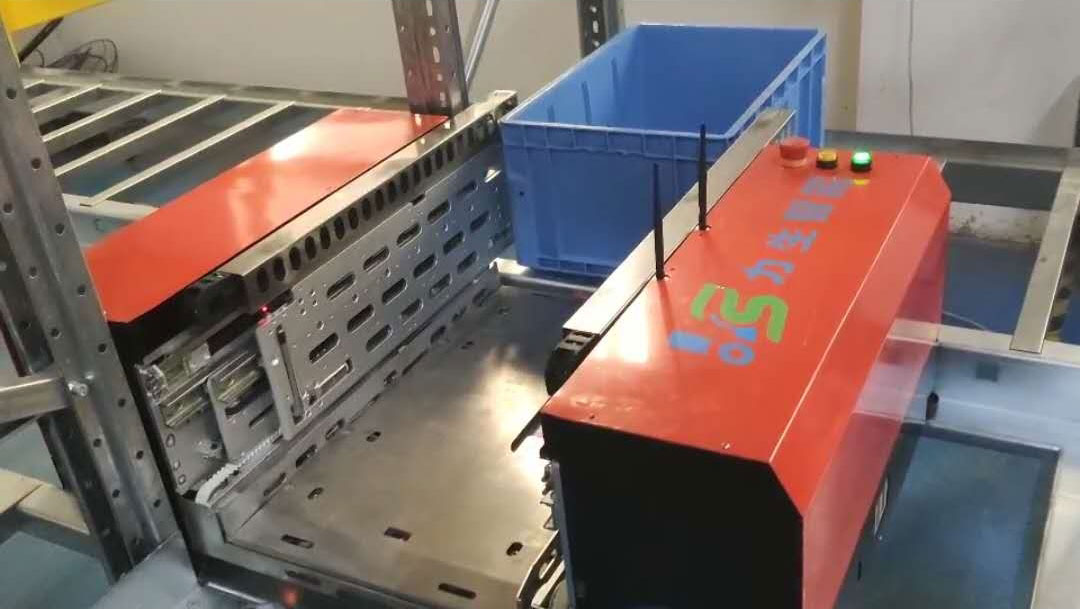

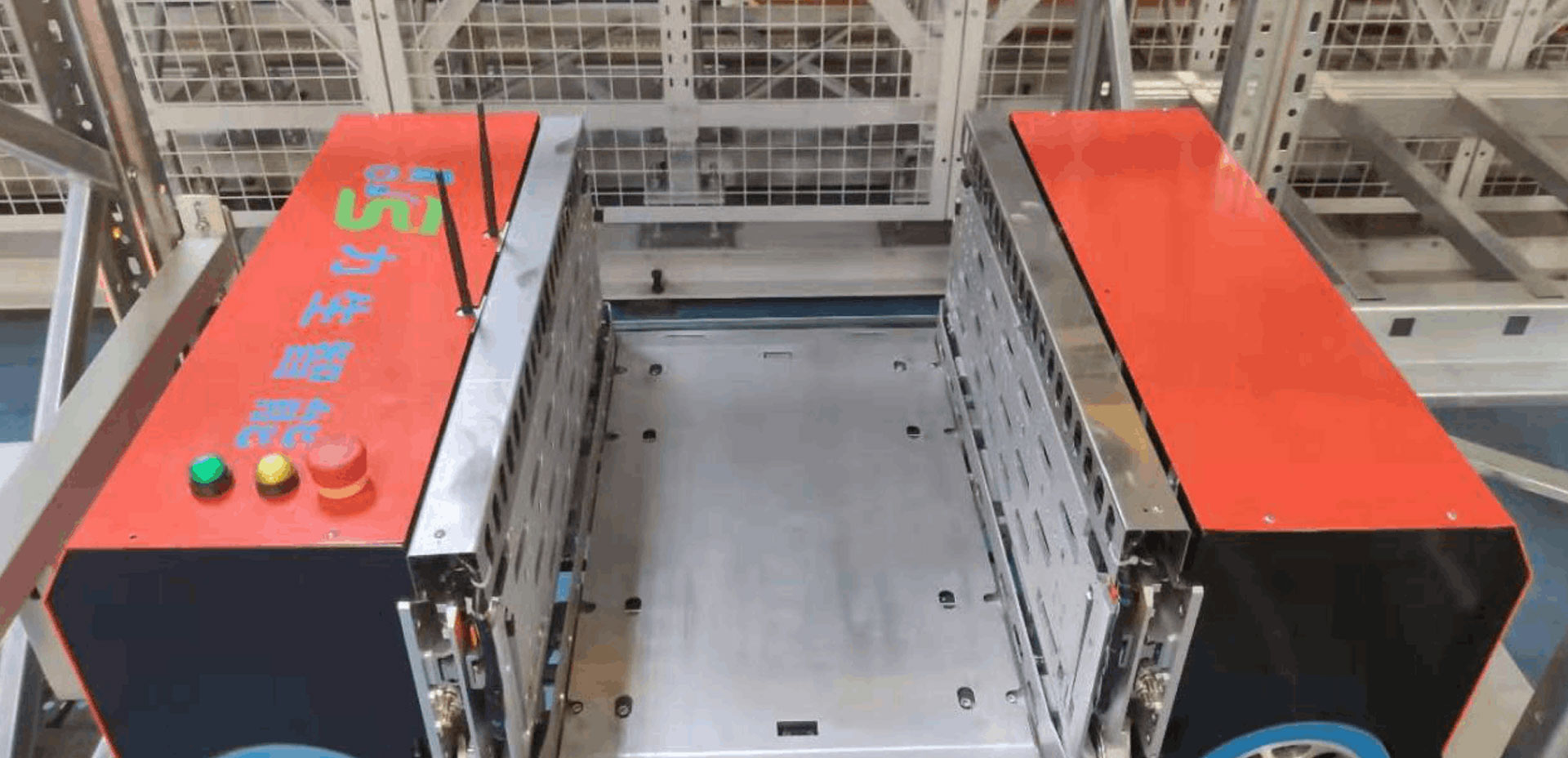

Four-way box shuttle: it is used for material box type cargo handling. It can travel in four directions and can realize cross roadway handling and loading and unloading of goods. It is suitable for the working scene of box type three-dimensional access. The shuttle system consists of a high-speed elevator and a shuttle car. After the shuttle car completes the operation in the roadway, it enters the high-speed elevator. The high-speed elevator carries the shuttle car to move up and down in the vertical direction, change the operation layer, or return to the conveying line layer for warehousing operation.

  • fourway-box-shuttle.jpg
  • fourway-box-shuttle.jpg

Parameter of four-way box shuttle

Number

Items

Parameter

1

Car size (L×W×H)

1060×720×390(mm)

2

Box size (L×W×H)

600×400×300(mm)

3

Material total weight(including box)

50kg

4

Maximum movement speed in roadway X

≥3m/s

5

Maximum acceleration in roadway ax

≥1.5m/s2

6

Maximum speed in Y direction

≥2m/s

7

Maximum acceleration in Y direction aY

≥1.5m/s2

8

Lifting time

1.5s

9

Lifting height

30mm

10

Power type

Lithium battery

11

Positioning mode

photoelectricity

12

Positioning accuracy

±3mm

13

Inventory method

Push and pull

14

Fork speed

Heavy load 30m/min    No Load 45m/min

15

Rail machinery limit

Guide wheel×4

16

Anti-collision detection

Reflection photoelectricity


Product features of four-way box shuttle

  • Convenience, modularization and standardization;

  • Four way multi-layer moving, easy layout;

  • Accurate positioning;

  • Multi vehicle operation on the same floor and intelligent dispatching;

  • Free extension, support customization.


Application scenario


Intelligent three-dimensional warehouse, box type three-dimensional intensive access;

Combine the material rack and three-dimensional warehouse to complete the function of automatic taking and placing goods.


THANK YOU FOR YOUR ATTENTION ON LISEN AUTOMATION
