Tilt-tray Sorter

Twin tilt-tray sorter: tilt tray sorter consists of a series of trays that are articulated and can tip left or right, or even includes the vertical sorter. When the tray loaded with goods comes to a certain position, tilt tray sorters will tip the goods to the side chute. There is no such restriction for the shape and size of the goods for this tray sorter use, as long as the goods don't exceed the tray edges. For long goods, tilt tray sorters can straddle two trays, and the two trays will tip goods at the same time when it's time for tipping. The tilt tray sorters can be loop type for continuous conveying, and its footprint is small.

Features: gentle handling in goods sorting; electric or mechanical tipping devices easy for maintenance; By adopting linear motor drive, maintenance cost and consumption are low; Due to modular design, the running is very quiet and flexibility is high.

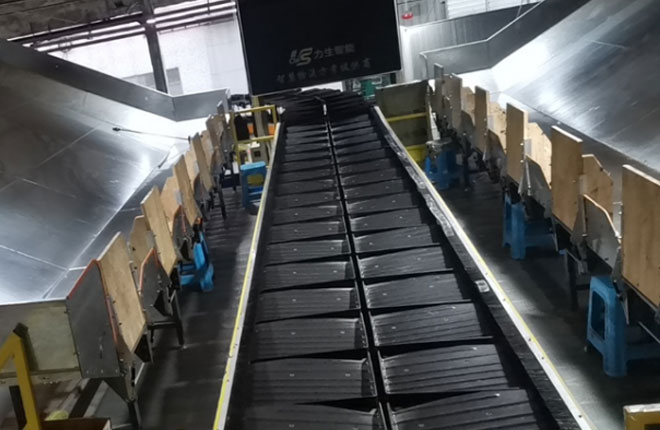

  • Tilt-tray Sorter

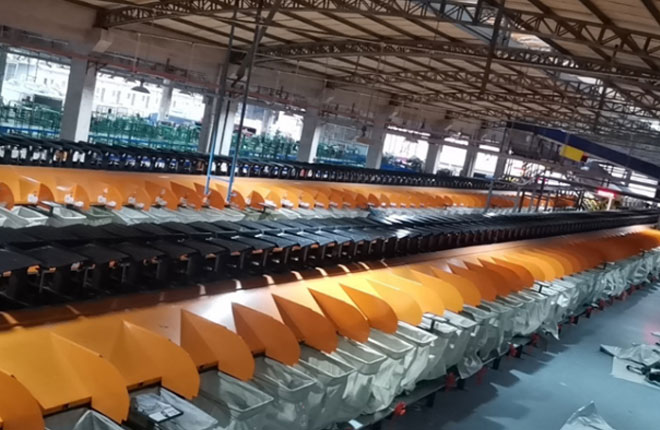

  • Tilt-tray Sorter

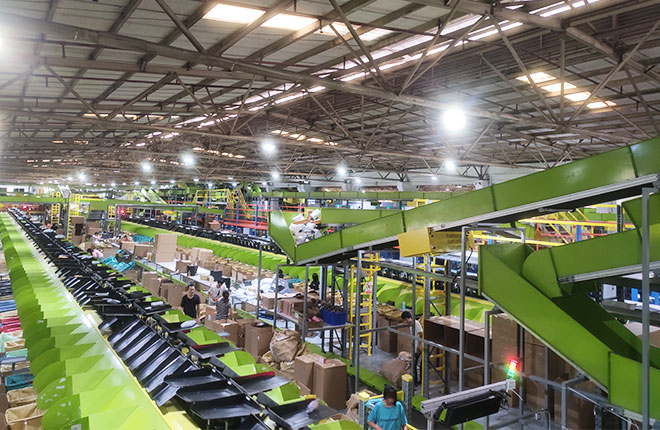

  • Lisen Tilt-tray Sorter

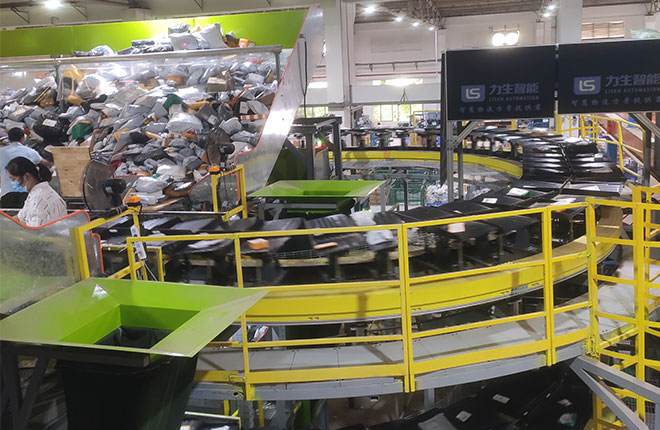

  • Lisen Automation Tilt-tray Sorter

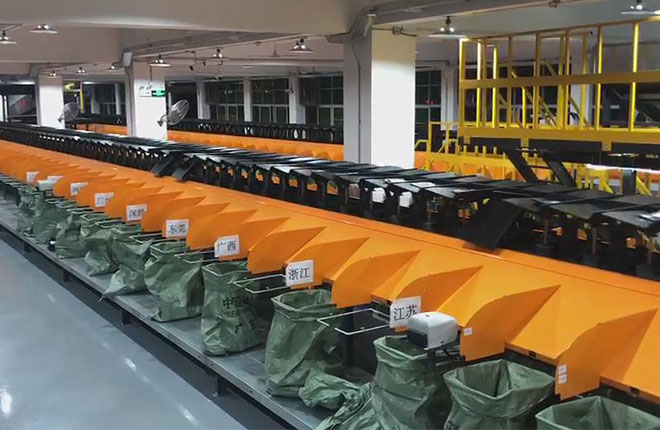

  • Lisen Automation Tilt-tray Sorter
  • Tilt-tray Sorter
  • Tilt-tray Sorter
  • Lisen Tilt-tray Sorter
  • Lisen Automation Tilt-tray Sorter
  • Lisen Automation Tilt-tray Sorter

Specification of Tilt Tray Sorter

No.

Item name

Parameter

Remark

1

Carrier pitch

450MM


2

Carrier size

430*550MM


3

Sorter speed

1.3M/S

Manual induction

4

Theoretical efficiency

41600pcs/H(highest theoretical efficiency 83200pcs/h for double layers)

1.3*3600seconds/0.45*2*2(opposite side chutes 100% reuse)double layers supportable

5

Sorting accuracy

≥99.99%


6

Barcode reading rate

≥99%


7

Chute width

750mm


8

Parcel size

Max.L400×W400×H400,Min. L100×W100×H1


9

Parcel weight

30g~10kg


Lisen Automation, as a logistics solution provider, offers different specifications of tilt tray sorter.

More details can be achieved in the tilt tray sorter videos.


Main parts brand

No.

Main parts

Brand

Remark

1

Linear motor

TAIFU/M&D


2

Barcode reader

Italy Datalogic/Germany SICK/US Cognex/HIKVISION

Select a suitable reader according to different parcel characteristics

3

Grayscale test

US BANNER/Italy Datalogic


4

PLC

Germany Siemens


5

Cylinder

Taiwan AirTAC


6

Track

LISEN

Tailored aluminum extrusion

There is no electric roller or sliding contact line, and the mechanical structural carrier has no electrical components.


Advantages of Tilt Tray Sorter

  • Sorting efficiency is 20800-41600pcs per hour (The efficiency varies from different kinds of sorter equipment and chute reuse rates) (The highest running speed is 1.3m/s, double layers are supportable and the highest theoretical efficiency of double layers sorter is 83200pcs per hour).

  • Low operation and maintenance cost, low energy consumption, short ROI cycle.

  • This kind of materials handling system is Simple to operate, easy to use.

  • Manual induction.

  • The main drive adopts a non-contact linear motor (asynchronous linear motor).

  • No need for deviation rectification, multilateral or beyond edge detection.

  • Strong compatibility with the abnormally shaped parcel, high handling efficiency, low labor intensity in manual induction, lower cost of comprehensive investment under the same efficiency.

Advantages of Tilt Tray Sorter

Applied Industries of Twin Tilt Tray Sorter

  • Postal industry

  • Supermarket industry

  • E-commerce industry

  • Footwear & Apparel industry

  • Fresh food distribution industry

  • Other industries



Application Scenarios of Twin Tilt Tray Sorter

Applicable for the sorting of parcels or products in Post, Express, E-commerce, Apparel & Footwear, Fresh food distribution and other industries; suitable for various block parcels with different sizes, shapes and natures, smaller than 500*400mm, excluding those round and easy-rolling or superlight ones; sorting weight range 20g-10kg. The tilt tray sorter manufacturers also provide perfect aftersale service.
