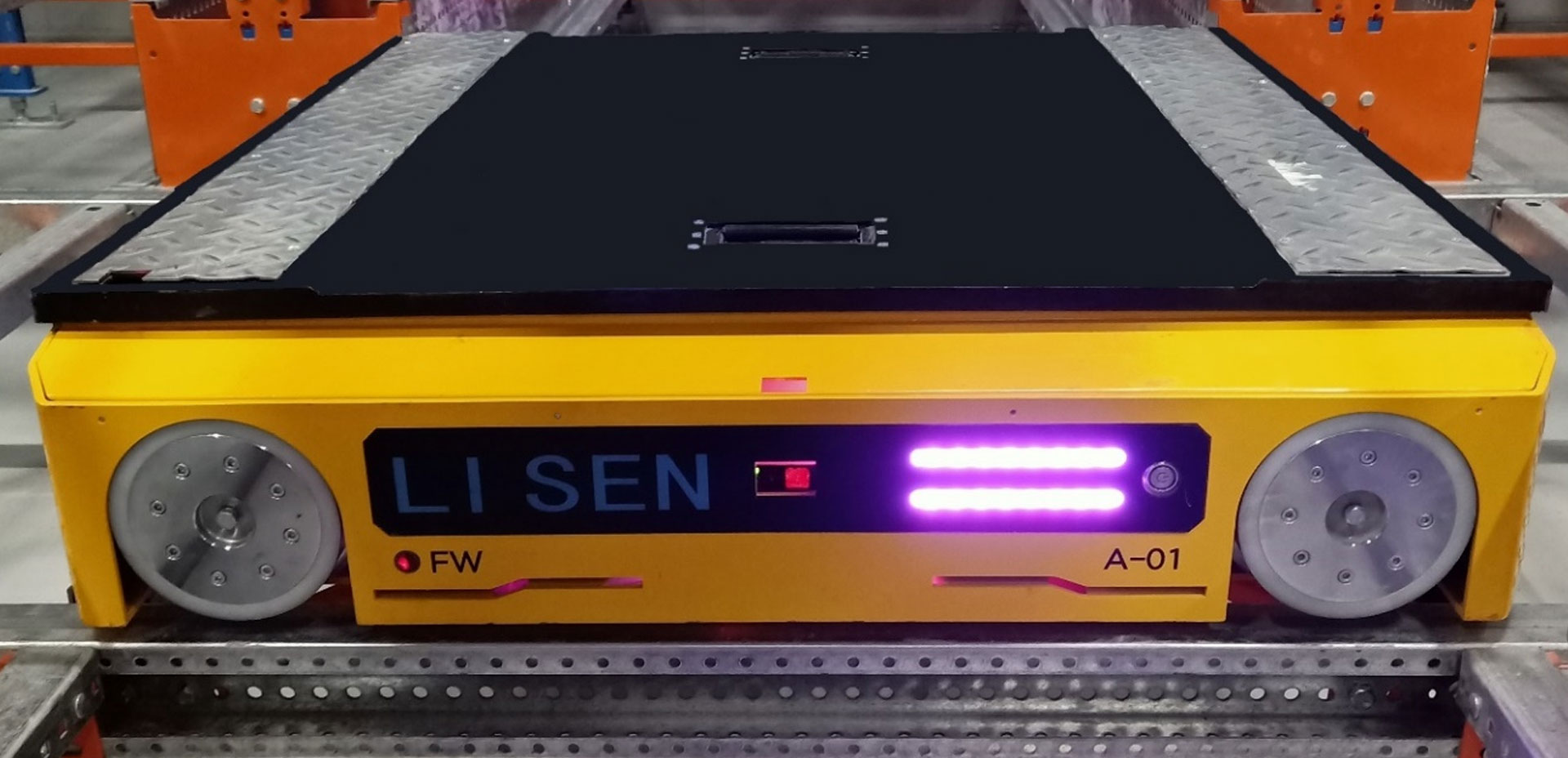

Four-way Pallet Shuttle

Four-way Pallet Shuttle

It is used for pallet goods handling. It can realize both vertical and horizontal moving, and can reach any position in the warehouse; The horizontal movement and access of goods in the shelf are only completed by one four-way pallet shuttle. The degree of automation of the system is greatly improved through the layer change of the elevator. It is the latest generation of intelligent handling equipment for pallet intensive storage solutions.

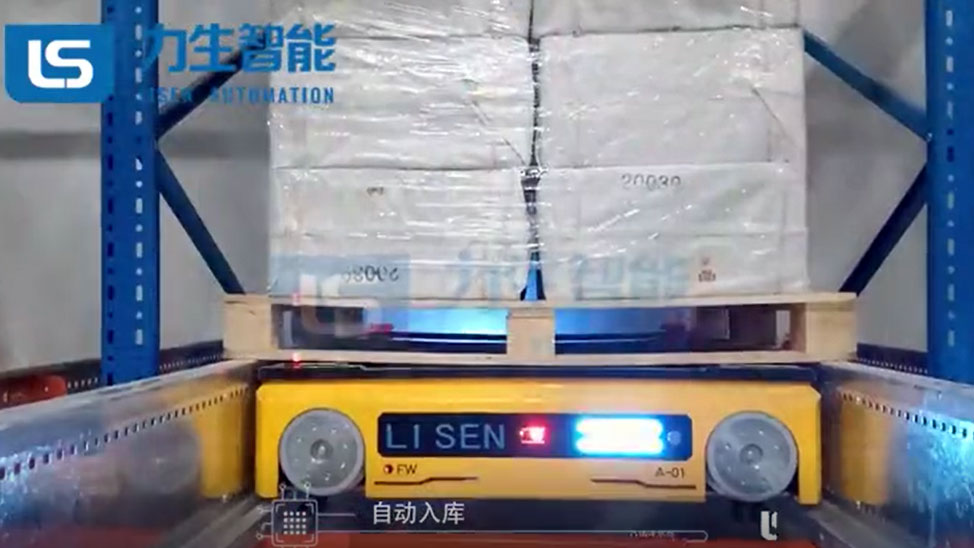

  • Fourway-pallet-shuttle.jpg

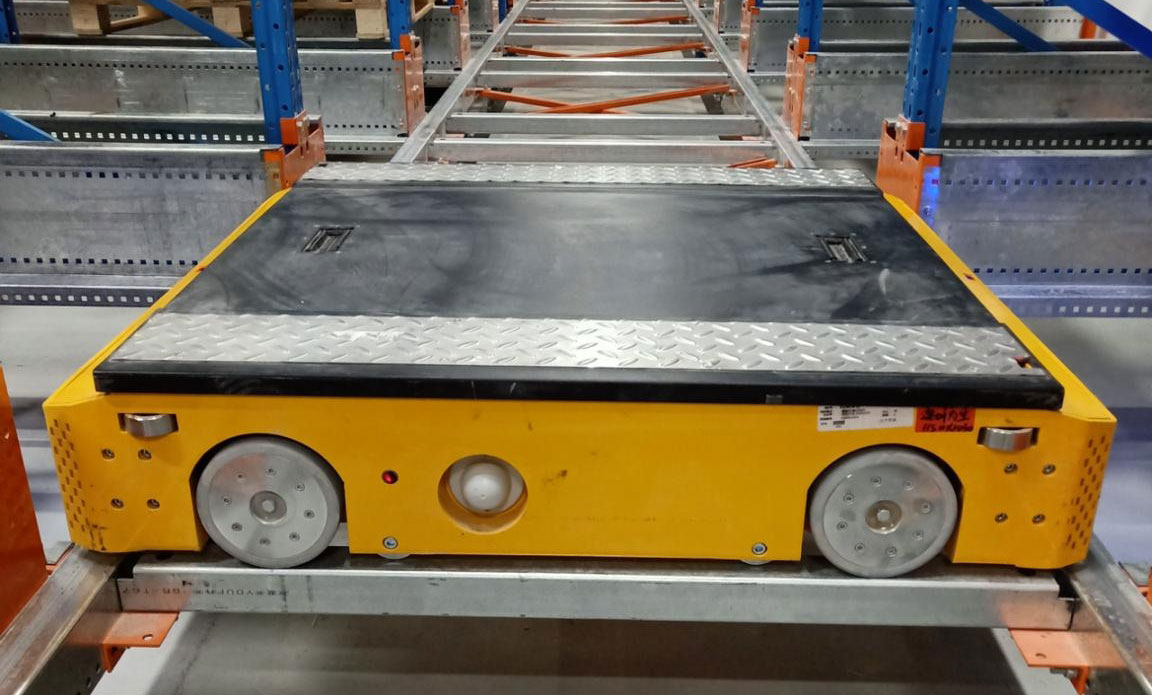

  • Fourway-pallet-shuttle.jpg

Parameters of four-way pallet shuttle

Number

Items

Parameter

1

Rated load

1000kg

2

No load speed in main rail direction

2m/s

3

Heavy load speed in main rail direction

1.5m/s

4

Power of moving motor in main rail direction

1500w

5

No load speed in auxiliary rail direction

1.2m/s

6

Heavy load speed in auxiliary rail direction

1m/s

7

Positioning accuracy

±2mm

8

Power of moving motor in auxiliary rail direction

750w

9

Battery type

Lithium iron phosphate

10

Battery life / charging time

8h/2h

11

Battery capacity

48V/50AH

12

Charging mode

Automatic charging

13

Jacking and reversing motor power

750w

14

Jacking and reversing time

3-4s

15

Photoelectric system

Long service life, stable signal and low fault

16

PLC

Stable and fast computing speed

17

Control mode

Online automatic / single machine manual

18

Communication mode

Wireless WIFI


Four-way pallet shuttle Features:


Independent integrated circuit board technology

Unique communication technology

Four way driving, cross roadway operation

Unique design, layer changing operation

Cooperative operation of multiple vehicles on the same floor

Assist in intelligent scheduling and path planning


Safety assistance


With the sensor design, the pallet can be accurately detected for handling

Laser limit technology ensures the safety of shuttle trucks and goods

The track is locked, and the shuttle only runs on the track, which is safe and reliable

Pallet anti-slip design

Laser ranging, early warning, multistage speed and position control

Dynamic position detection and real-time traffic safety guarantee


Application scenario


Intelligent three-dimensional warehouse, heavy load dense access scenario
