Light stacker series

Light stacker series

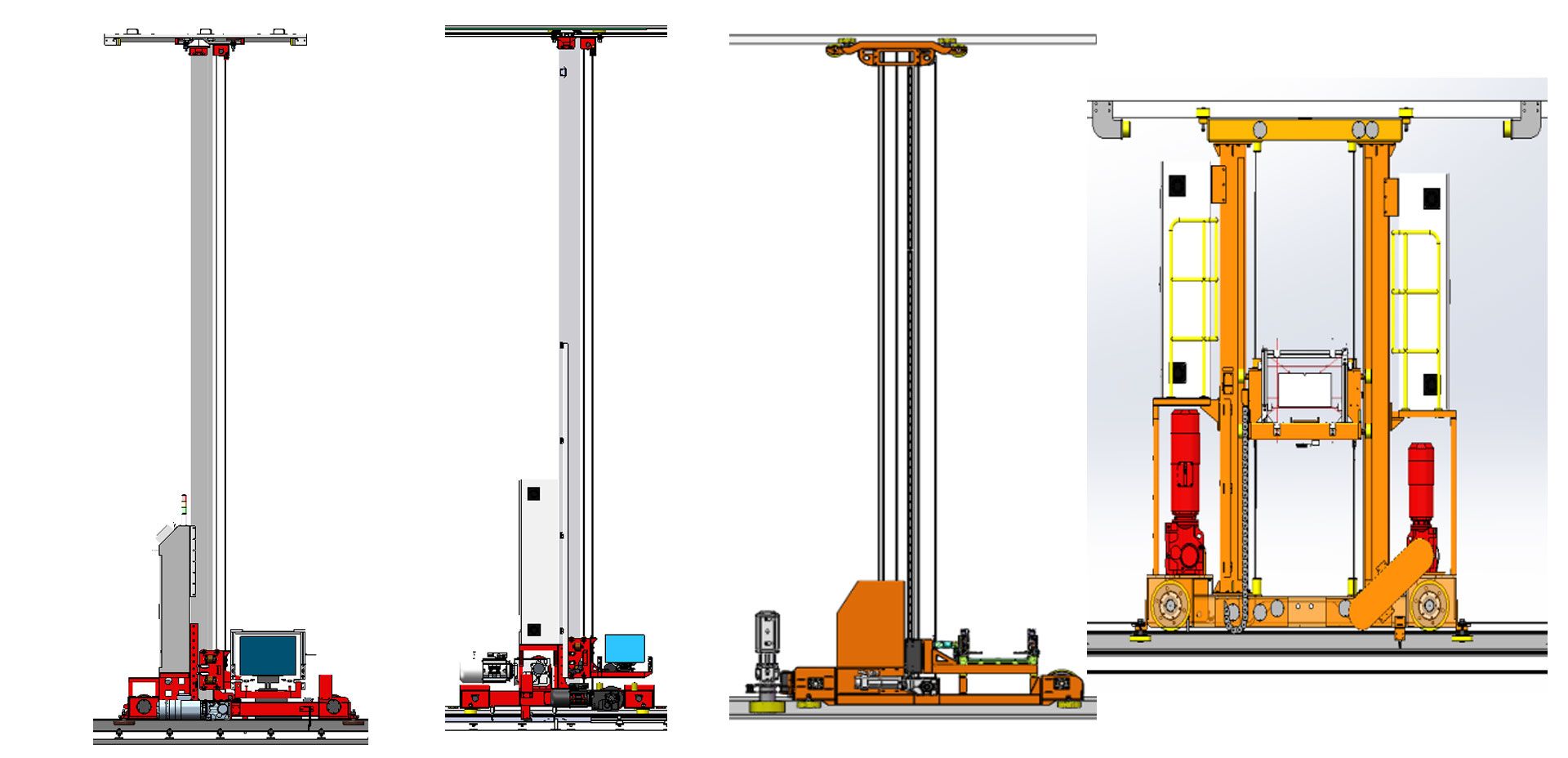

Lisen Automation light stacker mainly has four series: ML5012A, ML5012B, ML5012C and ML5012D. The fastest walking speed of stacker can reach 360m / min.

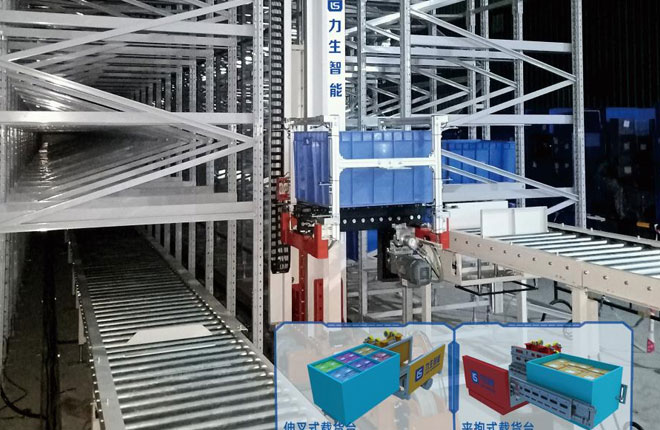

  • light-stacker-series.jpg
  • light-stacker-series.jpg

Parameters of light stacker Series

Items

Parameter

Parameter

Parameter

Parameter

Model

ML5012A

ML5012B

ML5012C

ML5012D

Max. payload

50kg

50kg

50kg

(50*2)kg

Equipment Height

12m

12m

12m

12m

Stroke

≤100m

≤30m

≤100m

≤100m

Walking speed

250m/min

350m/min

250m/min

200m/min

Walking acceleration

2.0m/s²

3.5m/s²

2.5m/s²

1.5m/s²

Lifting speed

60m/min

60m/min

60m/min

60m/min

Lifting acceleration

2.0m/s²

3.5m/s²

2.5m/s²

1m/s²

Access cycle

7s

7s

7s

7s


Product features

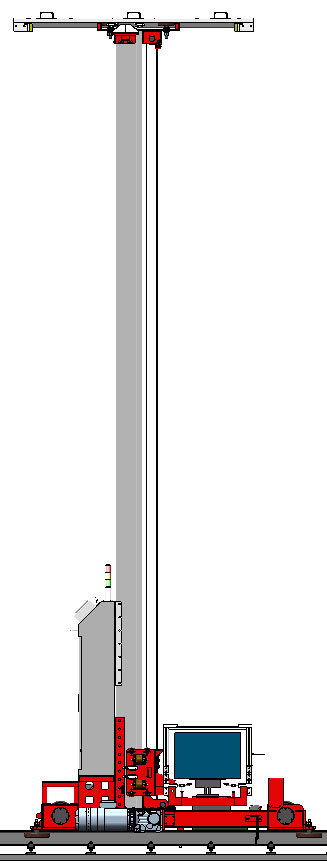

ML5012A:

Aluminum profile single column structure, light and beautiful ;

Horizontal walking is driven by walking friction wheel, which can run for a long distance;

It is applicable to the transshipment and storage of light load box-type cargo.

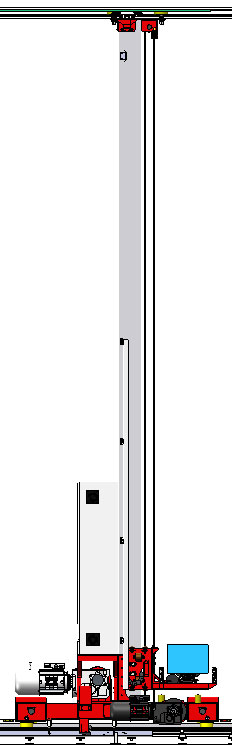

ML5012B:

Aluminum profile single column structure, light and beautiful;

Horizontal walking is driven by synchronous belt, with high walking speed and acceleration;

It is applicable to the transshipment and storage of short-distance and light load box-type cargo.

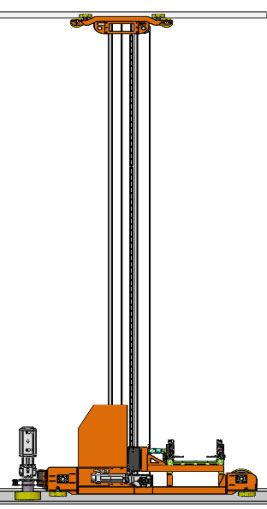

ML5012C:

Aluminum profile single column structure, light and beautiful;

Horizontal walking adopts clamping friction wheel, with high walking speed and acceleration;

It is applicable to the transshipment and storage of long-distance and light load box-type goods.

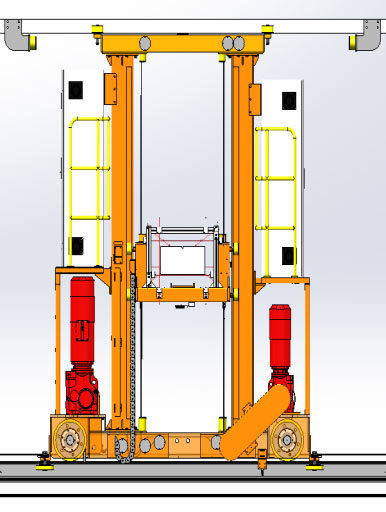

ML5012D:

Double column structure is adopted, with stable structure;

The horizontal traveling adopts the friction drive of traveling wheel, which is suitable for long-distance transportation;

It is applicable to the transfer and storage of double station / double deep position and light load box-type goods.



Case application

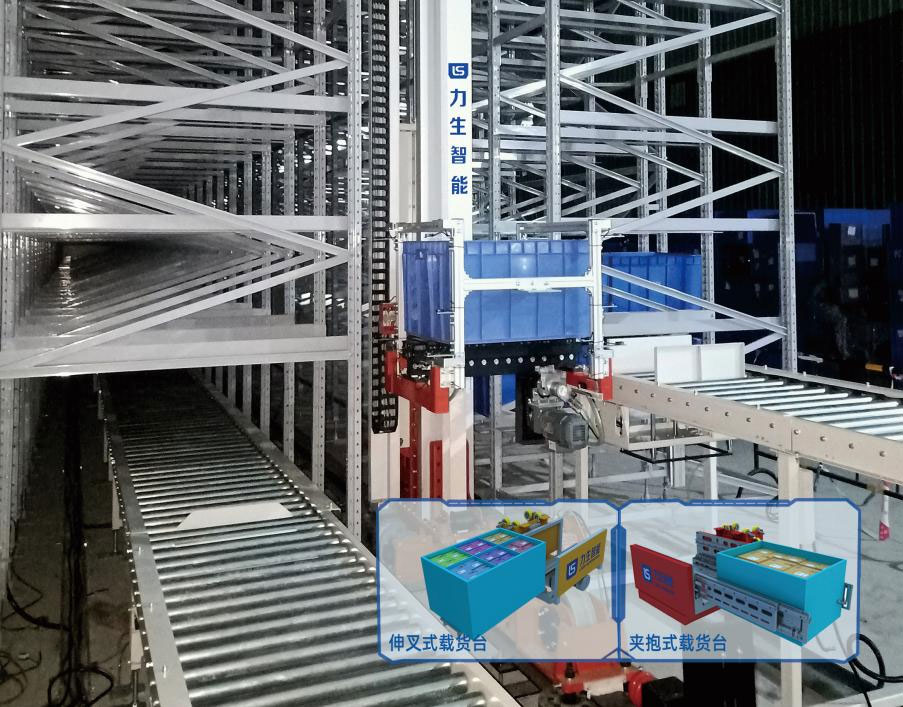

Application of light stacker series
