Stacked Laser Forklift AGV

With the steering wheel drive system, the turning radius is small, the driving force is large, and the stability of the whole vehicle is good. With the laser navigation mode, a series of "heavy physical labor" such as accurate handling, stacking and unloading of goods can be realized in the unmanned state, which is suitable for logistics and warehousing systems, automated factories, workshops, warehouses and other multi-material transportation occasions.

There are three series of stacking laser forklift AGV independently developed by Lisen intelligent.


  • stacked-laser-forklift-agv-1.jpg
  • stacked-laser-forklift-agv-1.jpg

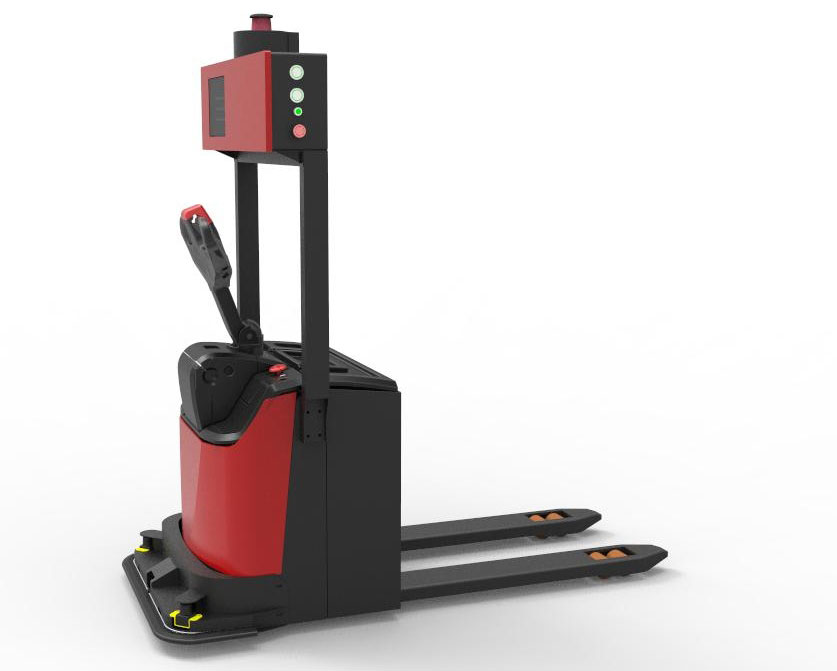

Series 1

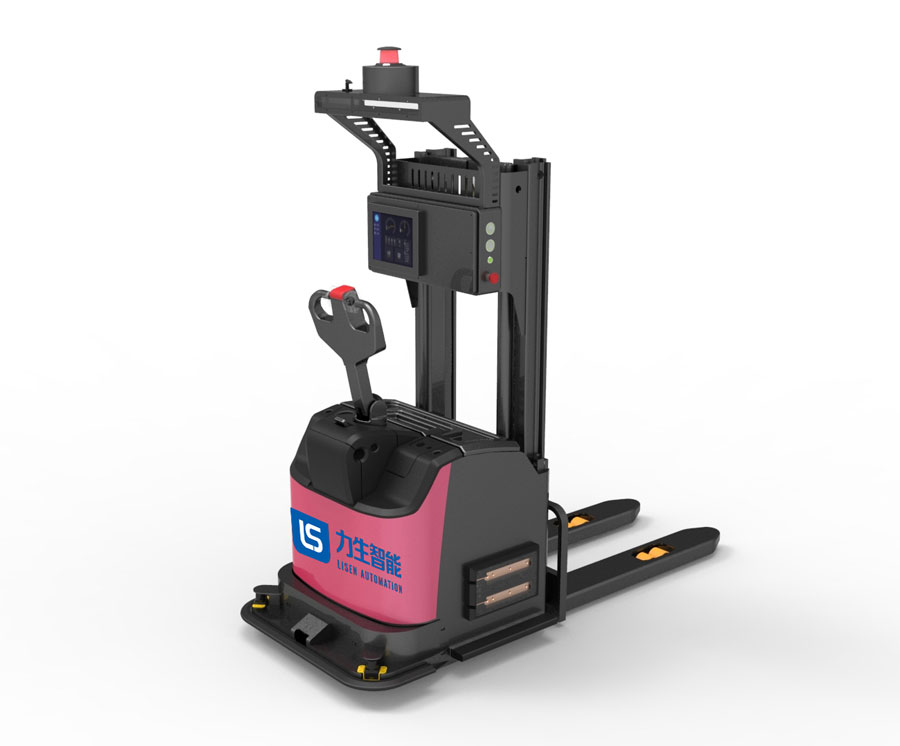

Series 2

Series 3


Parameter comparison of staacked laser forklift truck

ProjectSeries1Series2Series3ProjectSeries1Series2Series3
Driving formSteering wheel driveCommunication methodWireless local area network
Guiding formLaser navigationBattery typeLithium iron phosphate
Running directionForward and backward,turn left and right,rotate in placeFork sizeS64×E170×L1150mmS60×E185×L1150mmS35×E100×L1070mm
Running speedFull load6km/h
No load7km/h
Full load5km/h
No load7km/h
Full load5.5km/h
No load6km/h
Load capacity2000kg1400kg、1600kg1200kg、1500kg
Positioning accuracy±10mmHoisting height125mm2700mm2700mm
Outline dimensionL1900×W800×H2000(mm)L2200×W800×H2000(mm)L2200×W1074×H2000(mm)Minimum turning radius1627mm1662mm1600mm
Power supply mode24V,Lithium batteryMinimum right-angle stacking channle width2500mm
Charging modeAutomatic charging/manual chargingGradeabilityLess than3°
Safety protectionSafety touch edge+Laser collision avoidance+photoelectric collision avoidance+emergency stop buttonSafety sensing range0-5m adjustable
Braking modeElectromagnetic brakingAllowable groove width10mm



Product advantage:

  • Forklift AGV can carry pallets and materials,and has a wide range of applications;

  • There is no need to set a magnetic strip to transform the environment,and it is compatible with natural environment navigation and reflector navigation;

  • High flexibility,simple route change,adapting to the changes of intelligent factory and warehouse environment;

  • Modularization,simple assembly and fast delivery,and fast on-site construction mode.


Application scenario:

  • Intelligent shelf warehouse,plane warehouse,production workshop and other inbound and outbound logistics handling;

  • Combine various types of pallets and plane warehouse to complete the automatic picking and preventing function.
