Heavy Stacker Series

Heavy Stacker Series

There are four series of Lisen Automation heavy stacker: SLD0512 ,SLD1024,SLD152 and SLD3012.

  • heavy-stacker-series.jpg
  • heavy-stacker-series.jpg

Parameters of heavy stacker series

Items

Parameter

Parameter

Parameter

Parameter

Model

SLD0512

SLD1024

SLD1524

SLD3012

Max.payload

300~500kg

800~1200kg

1500~2000kg

3000kg

Equipment height

12m

24m

24m

12m

Stroke

≤100m

≤100m

≤100m

≤100m

Walking speed

160m/min

160m/min

160m/min

80m/min

Walking acceleration

0.4m/s²

0.4m/s²

0.4m/s²

0.2m/s²

Lifting speed

30m/min

30m/min

30m/min

15m/min

Lifting acceleration

1m/s²

1m/s²

1m/s²

0.5m/s²

Access circle

16s

16s

16s

20s


Product features of heavy stacker series

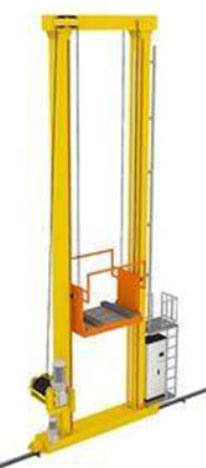

SLD0512

  • Double column structure is adopted, with stable structure;

  • The horizontal traveling adopts the friction drive of traveling wheel, which is suitable for long-distance transportation;

  • It is applicable to the transfer and storage of medium load pallet-type goods.

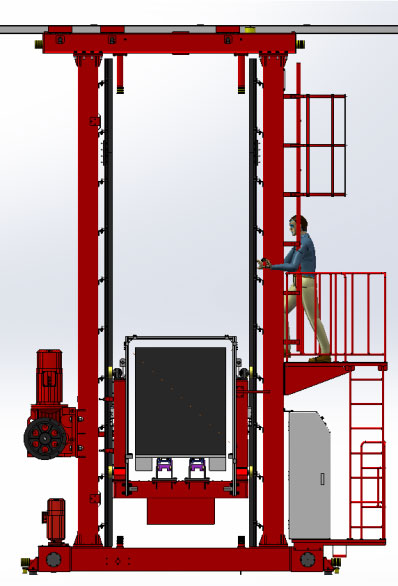

SLD1024

  • Double column structure is adopted, with stable structure;

  • The horizontal traveling adopts the friction drive of traveling wheel, which is suitable for long-distance transportation;

  • It is applicable to the transfer and storage of medium load pallet-type goods

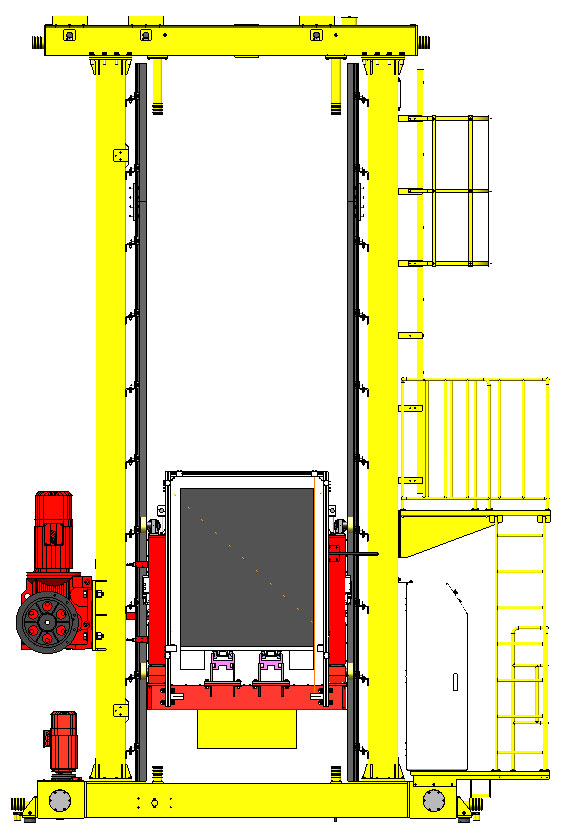

SLD1524

  • Double column structure is adopted, with stable structure;

  • The horizontal traveling adopts the friction drive of traveling wheel, which is suitable for long-distance transportation;

  • It is applicable to the transfer and storage of heavy load pallet-type goods.

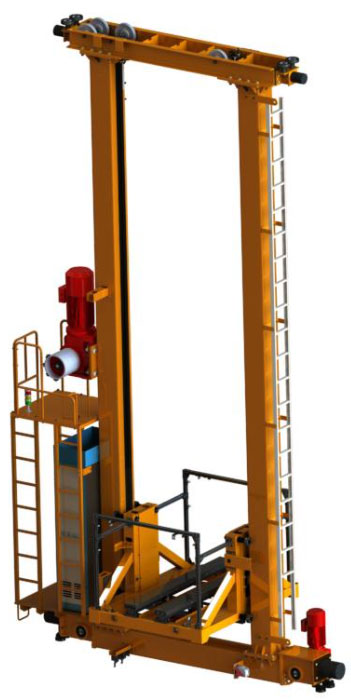

SLD3012

  • Double column structure is adopted, with stable structure;

  • The horizontal traveling adopts the friction drive of traveling wheel, which is suitable for long-distance transportation;

  • It is applicable to the transfer and storage of super heavy load pallet-type goods.


Application case


Automatic warehouse(AS/RS) for furniture industry


Automatic warehouse(AS/RS) for rubber industry
