Automatic Pallet Stacking Machine, Automatic Pallet Splitting Machine, Automatic Pallet Combination Machine

Automatic Pallet Stacking Machine, Automatic Pallet Splitting Machine, Automatic Pallet Combination Machine

Automatic pallet stacking machine: It is applicable to the stacking of single pallets in the warehouse logistics system with pallets as carriers.

Automatic pallet splitting machine: It is applicable to the warehouse logistics system with pallets as carriers. Stacked pallets are splitted into single pallets.

Automatic pallet combination machine: It is applicable to automatic combination and stacking of child and parent pallets within a certain size range


  • automatic-pallet-stacking-machine-1.jpg
  • automatic-pallet-stacking-machine-1.jpg

Pallet stacking machine: also known as pallet collector, it is to send the empty pallets taken from the conveying line to the palletizer position one by one through the conveyor, automatically stack the pallets into a stack (generally 6-10), and the stacked pallets are stored in the warehouse or redistributed for use.

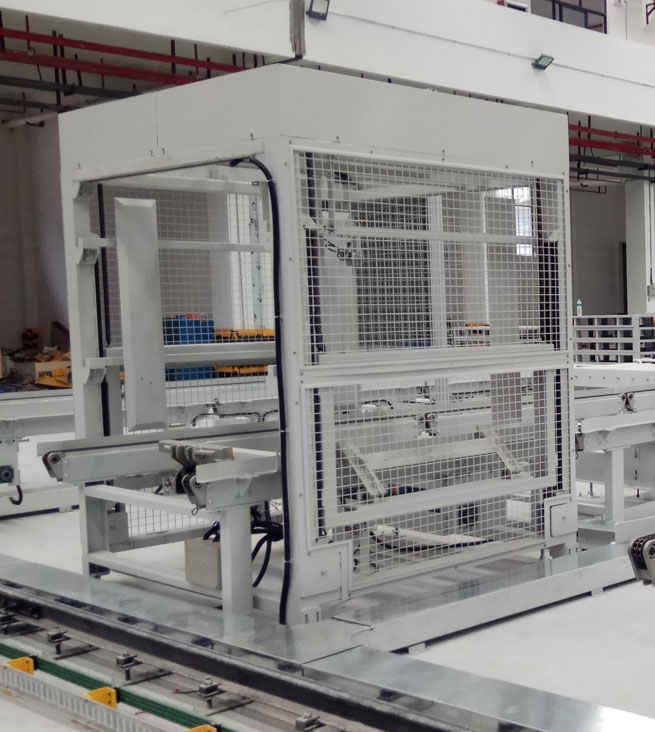

Automatic pallet stacking machine


Automatic pallet splitting machine: the working form is opposite to that of pallet stacking machine. It is to separate and send out the stacked pallets one by one as required. The shape and structure of the pallet stacking machine and the pallet splitting machine are basically the same. In addition to having all the structure and performance of the pallet splitting machine, the pallet splitting machine has a set of independent top fork transmission mechanism.

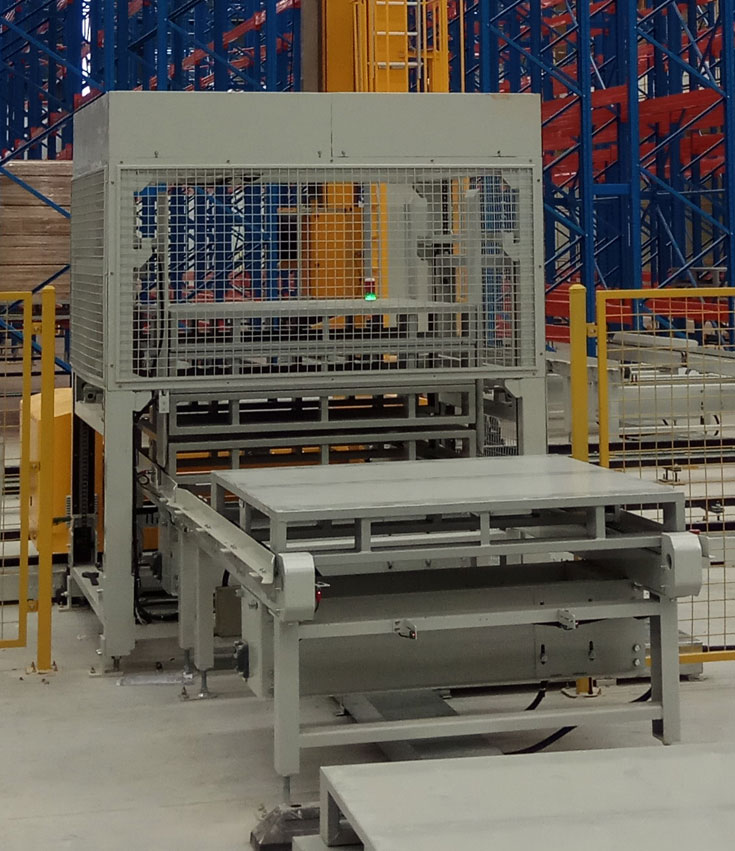

Automatic pallet splitting machine


Generally, the pallet stacking machine and pallet splitting machine cannot be used separately. They need to be combined in the conveying system. A single empty pallet is fed through the conveyor line for stacking, or the stacked pallets are separated and then sent out by the conveyor line.


The automatic pallet combination machine has the advantages of simple structure, strong load capacity and convenient maintenance. It can be compatible with the automatic combination and stacking of child and mother pallets within a certain size range.

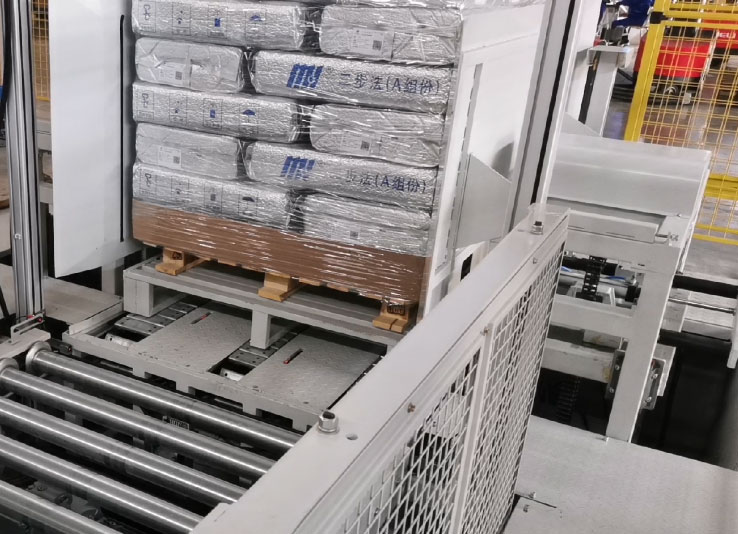

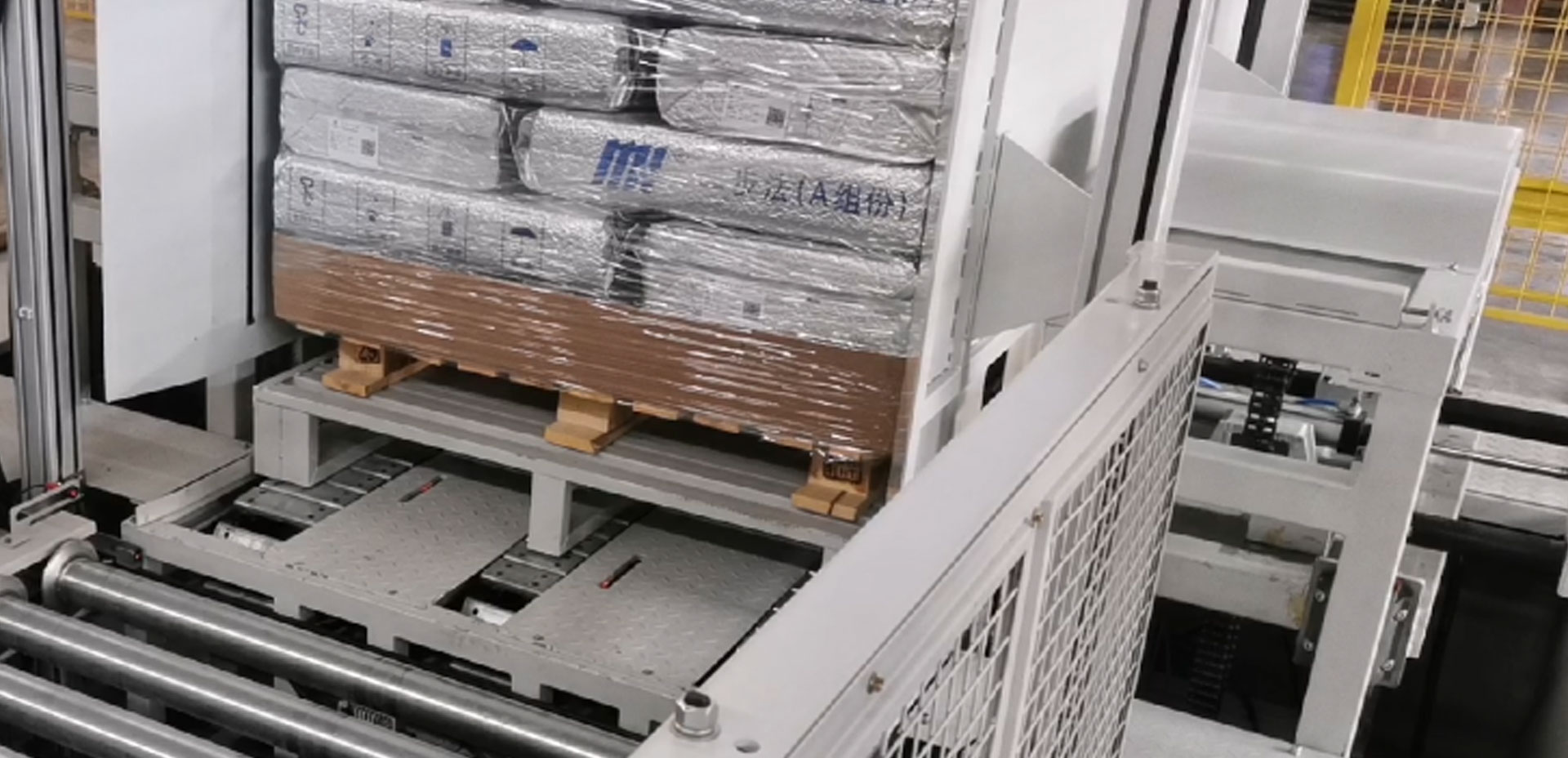

Automatic pallet combination machine



Parameters of automatic pallet stacking /splitting machine

Driving mode

Motor

Rated load

500kg

Number of pallets stacking layers

6~10 layers

Lifting speed

8m/min

Power Supply

3 phase 380V 50HZ

Machine material

Q235A


Parameters of automatic pallet combination machine

Products

Automatic pallet combination machine

Driving mode

Motor, cylinder

Rated load

1500kg

Parent pallet size

1200*1400mm

Child pallet size

1100*1300mm

Power supply

3 phase 380V 50HZ

Machine material

Q235A


Product features

Simple and compact structure, in line with safety standards;

Modular combination, easy installation and maintenance;

The above tables are standard model parameters, which can be customized according to the actual parameter needs of users.


Applicable scenario

It is used in the pallet conveying system. The automatic pallet stacking / splitting machine is combined with various conveyors to collect the empty pallets on the conveying line or distribute the empty pallets to the conveying line. The automatic pallet combination machine realizes the pallet assembling operation of different specifications and machine shapes without manual alignment, improves the alignment accuracy, reduces manual operation, and saves time and labor cost
