Narrow Belt Sorter

Narrow Belt Sorter

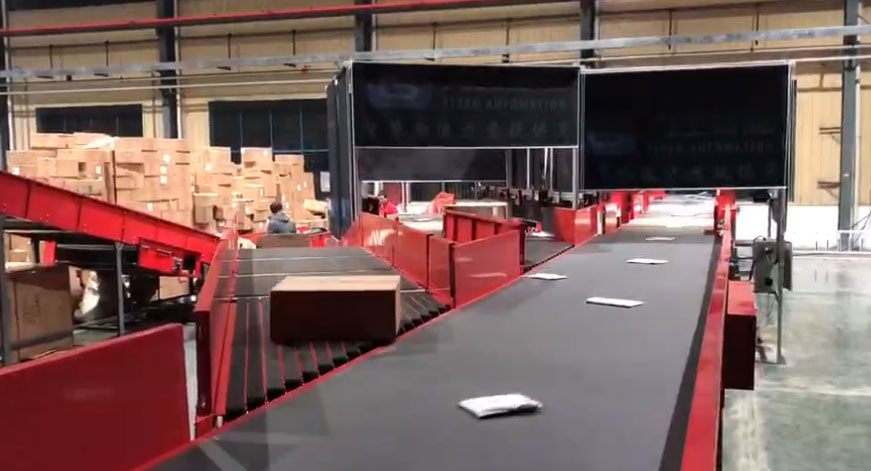

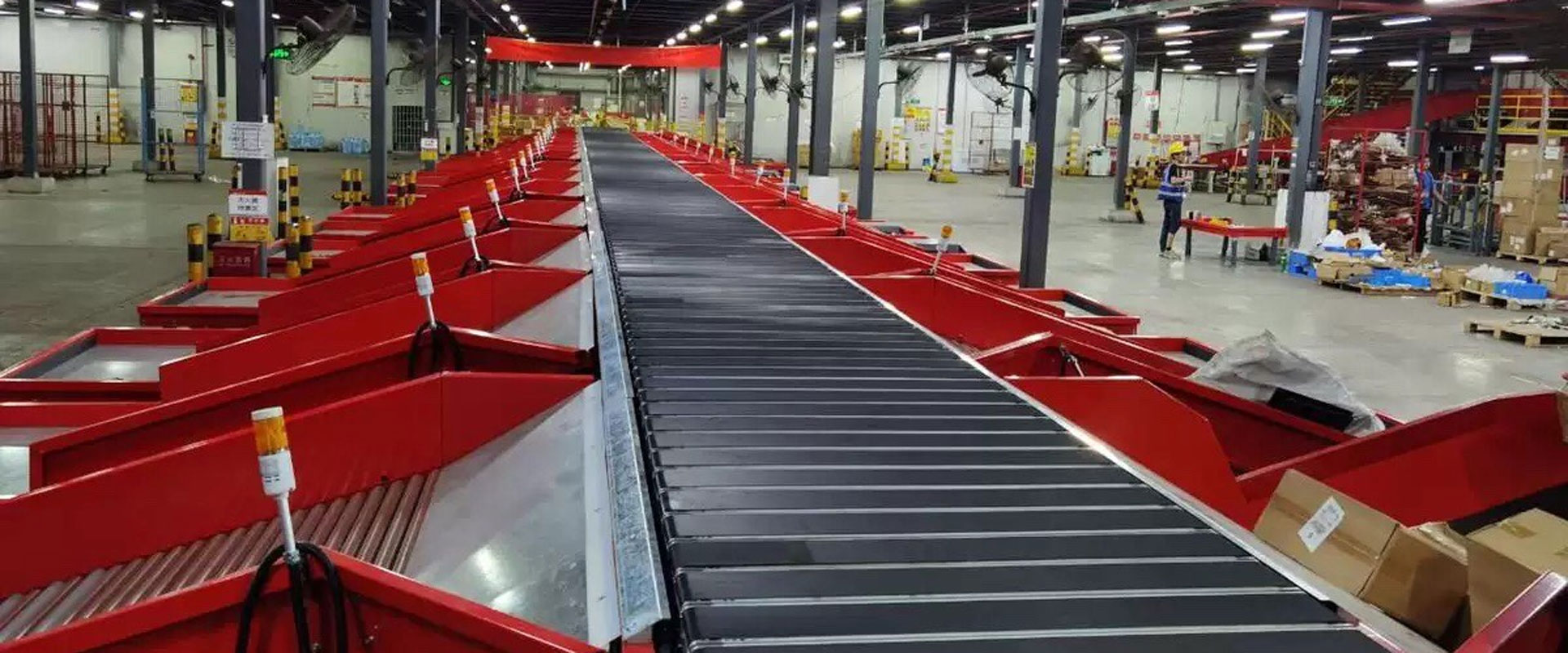

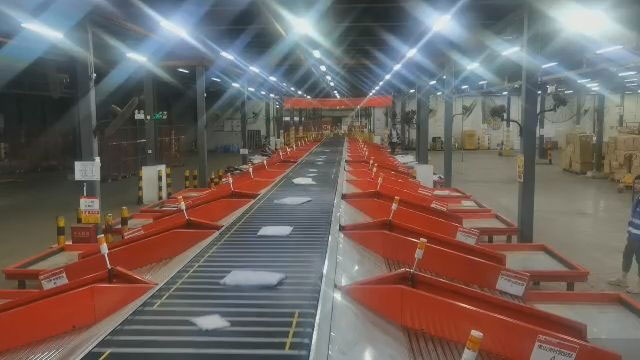

Narrow belt sorter is a belt conveyor composed of several narrow belts with equal spacing. Narrow conveyor is mainly used for sorting goods in warehousing, intralogistics, express, e-commerce and other industries. Narrow roller conveyor can handle large and small pieces such as cartons, flexible packaging, bag packaging, envelopes, as well as beverage and fragile items.


  • narrow-belt-sorter.jpg
  • narrow-belt-sorter.jpg

Parameters of Narrow Belt Sorter

No.

Model

Parameters

1

Driving mode

Reduction motor, chain

2

Carrier pitch

152.4mm,the system can allocate the number of carrying cars according to the package size

3

Line specification

Width:800mm/1300mm(customizable)
Length:8-65m(customizable)

4

Sorter speed

1.0-2.0m/s adjustabe

5

Sorting accuracy

≥99.99%

6

Package breakage rate

≤0.01%

7

Chute width

2000mm(1.8m/s)
2200mm(2.0m/s)

8

Parcel size

max.1500×800×700mm,min.100×100×1mm

9

Parcel weight

50g~50kg

10

Average noise

≤75dB(A)

11

Theoretical efficiency

≥5000 pcs/ h(sorting efficiency is related to the average length of parcels. The above data is the actual sorting efficiency when the average length of parcels is 500mm and the sorter speed is 1.8m/s)


Advantage of Narrow Belt Sorter

  • The conveyor surface of narrow belt conveyor is in the form of belt, which belongs to flexible sorting. Narrow belt conveyor can be compatible with the sorting of uneven bottom, soft package, small volume, liquid and fragile package, reducing the error rate and damage rate;

  • Compatible sorting of large and small pieces, high processing efficiency, automatic feeding mode can reduce labor intensity;

  • Small carrier pitch, smaller turning radius and lower equipment height;

  • The sorting action of narrow-belt carrier unit is driven by mechanical mode, so there is no need for a large number of electrical components, which greatly reduces the cost;

  • Simple operation and maintenance, less energy consumption and short capital return cycle.





Applicable industries of Narrow Belt Sorter

  • Intralogistic and warehouse industry

  • Express industry

  • E-commerce industry

  • Other industry
