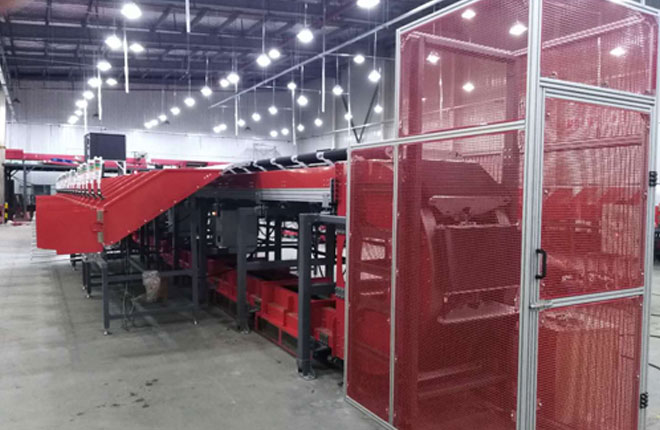

Linear Sorter

Linear sorter: the conveyor surface is composed of metal sheets, and there is a narrow belt on each metal sheet, which can move laterally along the metal sheet. When parcel arrives designated chute position, control system controls guide rob to action to make belt move towards side of conveyor, motivating the parcel and realizing the parcel sorting.

Linear design, compact structure, small footprint, much space saving.
Wide application range, applicable for various goods with different sizes, shapes and natures, lower than 10kg, including very small and thin ones.
Extremely low running noise. The average noise of line sorter is lower than 70dB.
Low operation and maintenance cost, easy and safe to operate.

Request A Quote

Specification of Linear Sorter

Parameters of twin-carrier linear sorter
No.	Item name	Parameter	Remark
1	Carrier pitch	500MM
2	Carrier size	424*700MM
3	Sorter speed	1.0M/S~1.6M/S
4	Induction method	Manual, semi-automatic, fully automatic	Automatic induction（Min. weight 100g, Min. size 15010010mm)
4	Theoretical efficiency	10800pcs/H（1.5M/S）	Loop line speed*3600seconds/0.6
5	Sorting accuracy	≥99.99%
6	Barcode reading rate	≥99%
7	Chute width	750mm	Width adjusted according to parcel size and loop line speed
8	Parcel size	Max.600mm×400mm×400mm，Min.160mm×80mm×1mm	Support two carriers for one parcel loading（max. parcel size 800*600mm）
9	Parcel weight	20g~30kg	Support two carriers for one parcel loading, max. parcel weight 50kg.

Main parts brand
No.	Main parts	Brand	Remark
1	Carrier belt	SIEGLING、HIGHTEN
2	Electric roller	M&D/WIN Roller
3	Linear motor	SEW synchronous linear motor
4	Barcode reader	Italy Datalogic/Germany SICK/US Cognex/HIKVISION
5	Grayscale test	US BANNER/Italy Datalogic
6	PLC	Siemens
7	Sliding contact line	Germany VAHLE
8	Track	LISEN	Tailored aluminum extrusion /sheet metal track

As a logistics solution provider, Lisen Automation uses sophisticated parts in linear sorters and will offer perfect one-stop services for the customers.

Advantages of Linear Sorter

Automatic picking efficiency 10800pcs per hour.
Low operation and maintenance cost, low energy consumption, short ROI cycle.
Simple to operate, easy to use.
Low running noise, average noise less than 70dBA(one meter distance), improving working environment.
Manual, semi-automatic, fully automatic 3 induction methods for choosing.
Main drive adopts magnetic levitation structure (synchronous linear motor/asynchronous linear motor).
Automatic deviation rectification, multilateral and beyond edge detection functions.
Small footprint, applicable in narrow sites.

Application Industries of Linear Sorter

The linear sorter is one of baggage handling systems and often applied in the following industries:

Supermarket industry
E-commerce industry
Apparel & footwear industry
Fresh food distribution industry
Other industries

Application Scenarios of Linear Sorter

Applicable for the sorting of parcels or products in Post, Express, E-commerce, Apparel & Footwear, 3C and other industries； suitable for various block parcels with different sizes, shapes and natures, excluding those with uneven bottom, easy rolling or superlight ones；sorting weight range is 20g-30kg. Customers such as SF Express, Cainiao, JD, etc.
