CFRP 3D Cutting

CFRP 3D Cutting

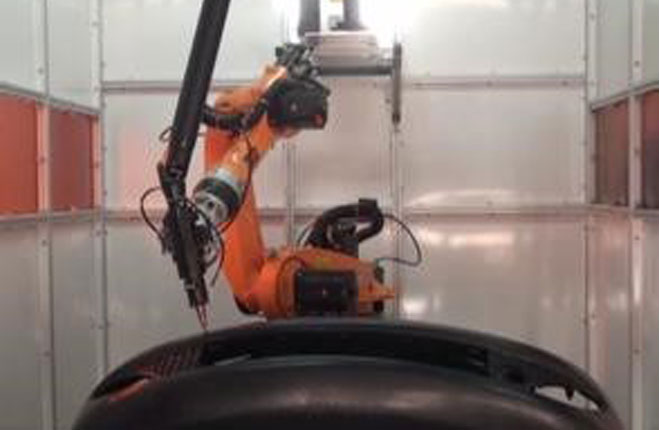

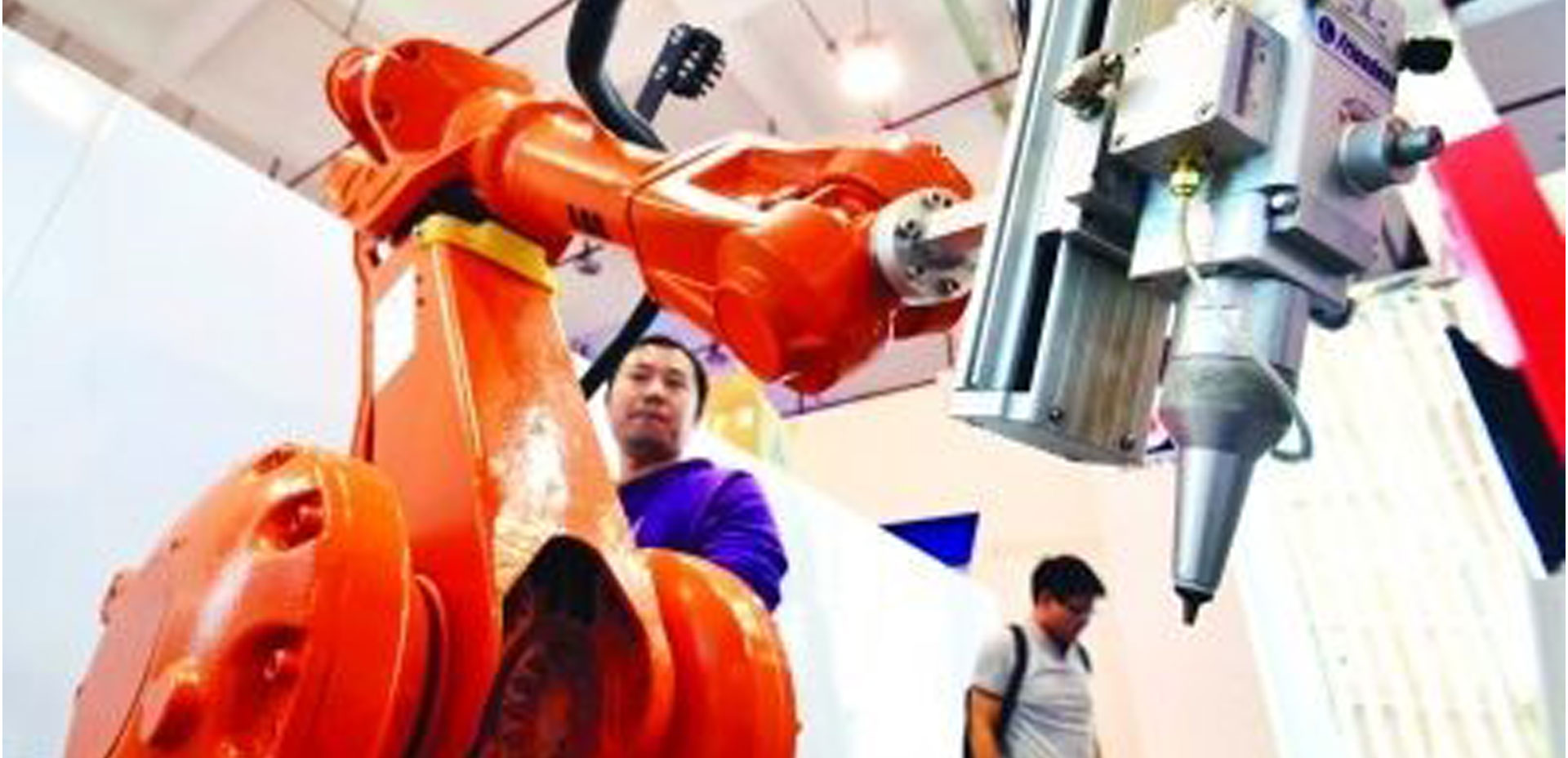

CFRP 3D cutting: 3D composite material laser cutting machine is a CO2 laser application scheme for 3D non-metallic materials. The precise six axis robot is combined with CO2 light path and built into the hollow arm of the robot through the light path, which greatly reduces the motion interference.


According to different process requirements, CO2 cutting head with different focal length can be selected, and anti-collision module can be configured to output collision alarm signal in time in case of motion collision, so as to effectively protect laser head and robot. The 3D composite material laser cutting machine is one of robotic welding integrators, which has higher maching accuracy.


  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting
  • CFRP 3D Cutting

Specification of CFRP 3D Cutting

No.Item NameParameter

1

Equipment dimensions

L4500mm*W2400mm*H2800mm

2

Footptint

15.㎡

3

Laser

Lisen Automation laser (optional) Power: 1500W, wavelength : 1064nm, Power : 250w-800w, wavelength :10.6um

4

Cutting speed

35-60mm/S  can be adjusted according to materia

5

Fixture

A/B Double workstation or rotary table

6

Fixture change

Locating pin / cylinder

7

Maximum parts size (reachability)

2100mm*1000mm*450mm

8

Maching Accuracy

±0.15mm

9

Positioning accuracy

±0.08mm

10

Power supply

3 phase 380/50-60HZ

11

Total power

20KW

12

Application

CFRP、Glass fiber、 PC、PP、ABS、PE、PET、

13

Programming

Hand held teaching or offline programming

13

Weight

3200KG


Lisen Automation, as a material handling system supplier, pursues the outstanding performance of products and is able to improve the function for your demand.



Advantages of CFRP 3D Cutting

  • High precision six axis robot is selected, and the flight light path is corrected by professional optical instruments, so the machining accuracy is high

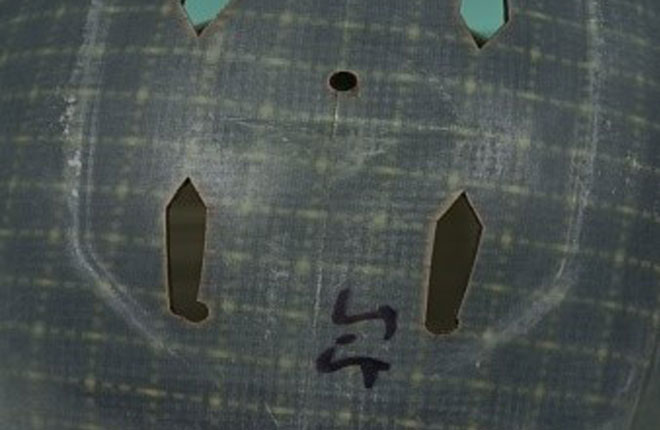

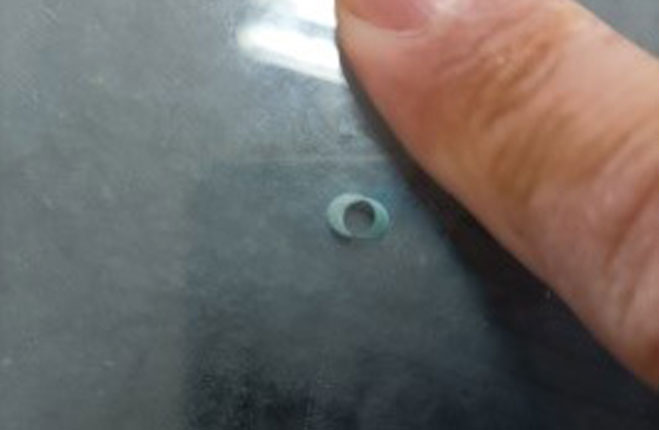

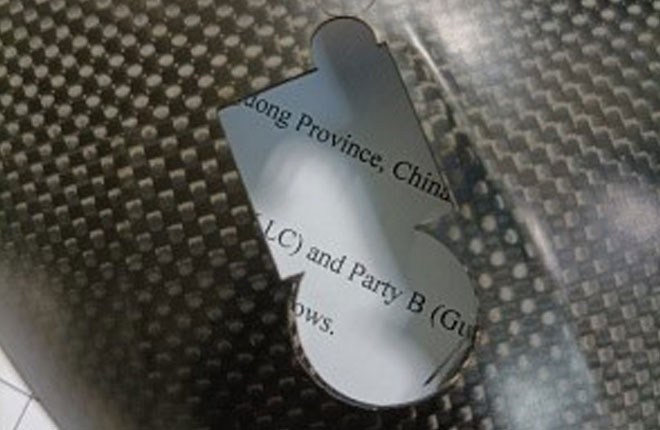

  • Laser cutting technology window is wide, cutting surface quality is high, no burr, no slag

  • CO2 laser is highly integrated with robot, especially suitable for laser processing of complex three-dimensional surface

  • The structure of the whole machine is tight, and the installation and debugging are simple

  • Set touch screen and PLC in one, with a serial interface, universal, strong applicability


Advantages of CFRP 3D Cutting
