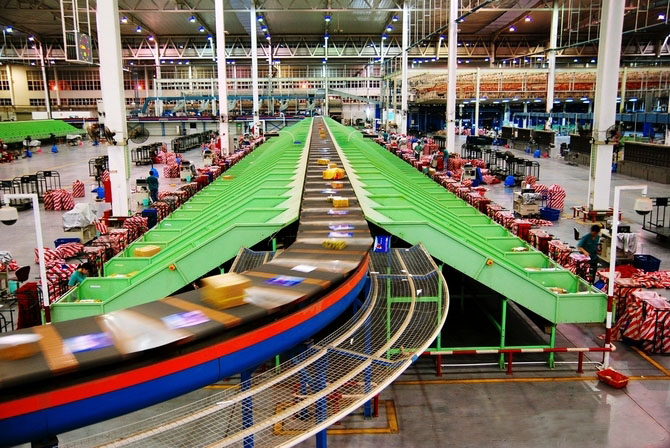

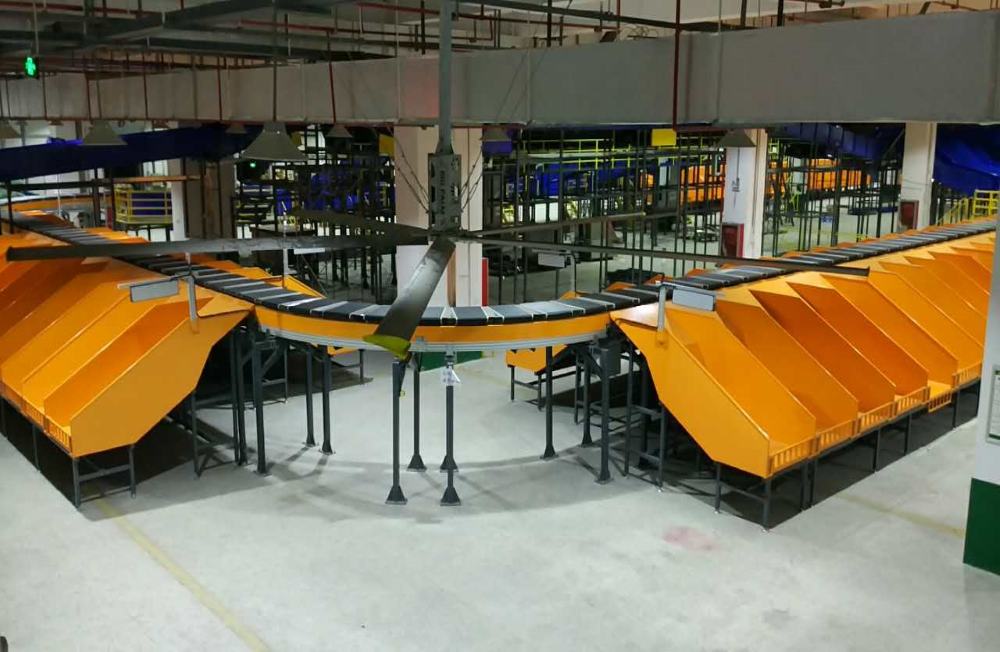

Single-carrier Cross Belt Sorter

Lisen Automation self-developed single carrier crossbelt sorter is widely used in postal, express, and e-commerce industries, with the high sorting efficiency of 9000-24000 pcs per hour, sorting weight of 20g-30kg, Our sorter has stable quality and low maintenance cost.


We have long-term cooperation with China Post and Spain post. Lisen Automation, as one of the most famous material handling experts in China, will be your reliable logistics, solution provider.


  • Single-carrier Cross Belt Sorter
  • Single-carrier Cross Belt Sorter
  • Single-carrier Cross Belt Sorter
  • Single-carrier Cross Belt Sorter
  • Single-carrier Cross Belt Sorter
  • Single-carrier Cross Belt Sorter
  • Single-carrier Cross Belt Sorter
  • Single-carrier Cross Belt Sorter

Specification of Single-carrier Cross Belt Sorter

Parameters of cross belt sorter

No.

Item name

Parameter

Remark

1

Carrier pitch

600MM


2

Carrier size

424*700MM


3

Sorter speed

1.2M/S~2.2M/S

Better not exceed 1.6M/S by manual induction

4

Induction method

Manual, semi-automatic, fully automatic

Automatic induction(Min. weight 100g, Min. size 150*100*10mm)

4

Theoretical efficiency

18000pcs/H(1.5M/S)
24000pcs/H(2.0M/S)

Loop line speed*3600seconds/0.6*2(opposite side chutes 100% reuse)

5

Sorting accuracy

≥99.99%


6

Barcode reading rate

≥99%


7

Chute width

750mm

Width adjusted according to parcel size and loop line speed

8

Parcel size

Max.600mm×400mm×400mm,Min.160mm×80mm×1mm

Support two carriers for one parcel loading(max. parcel size 900*600mm)

9

Parcel weight

20g~30kg

Support two carriers for one parcel loading, max. parcel weight 50kg.


Main parts brand

No.

Main parts

Brand

Remark

1

Carrier belt

SIEGLING、HIGHTEN


2

Electric roller

M&D/WIN Roller


3

Linear motor

SEW synchronous linear motor /Made-in China asynchronous motor


4

Barcode reader

Italy Datalogic/Germany SICK/US Cognex/HIKVISION


5

Grayscale test

US BANNER/Italy Datalogic


6

PLC

Siemens


7

Sliding contact line

Germany VAHLE


8

Track

LISEN

Tailored aluminum extrusion

/sheet metal track

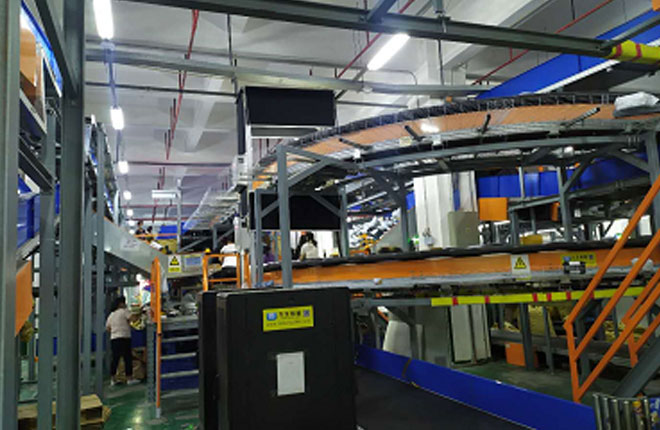

Advantages Of Single-carrier Cross Belt Sorter

  • Sorting efficiency: up to 9000-48000pcs per hour (The efficiency varies from different sorting systems, loop line speeds, induction methods, and chute reuse rates).

  • Low operation and maintenance cost, low energy consumption, short ROI cycle.

  • The cross belt sorter is easy to operate, easy to use.

  • Low operating noise, average noise less than 70dBA (one-meter distance), improving the working environment.

  • Manual, semi-automatic, fully automatic 3 induction methods for choosing.

  • The main drive adopts a magnetic levitation structure(synchronous linear motor/asynchronous linear motor).

  • Automatic deviation rectification, multilateral and beyond edge detection functions.


Advantages Of Single-carrier Cross Belt Sorter

Application Industries of Single-carrier Cross Belt Sorter

  • Supermarket industry

  • Postal industry

  • Express industry

  • E-commerce industry

  • Apparel & footwear industry

  • 3C industry

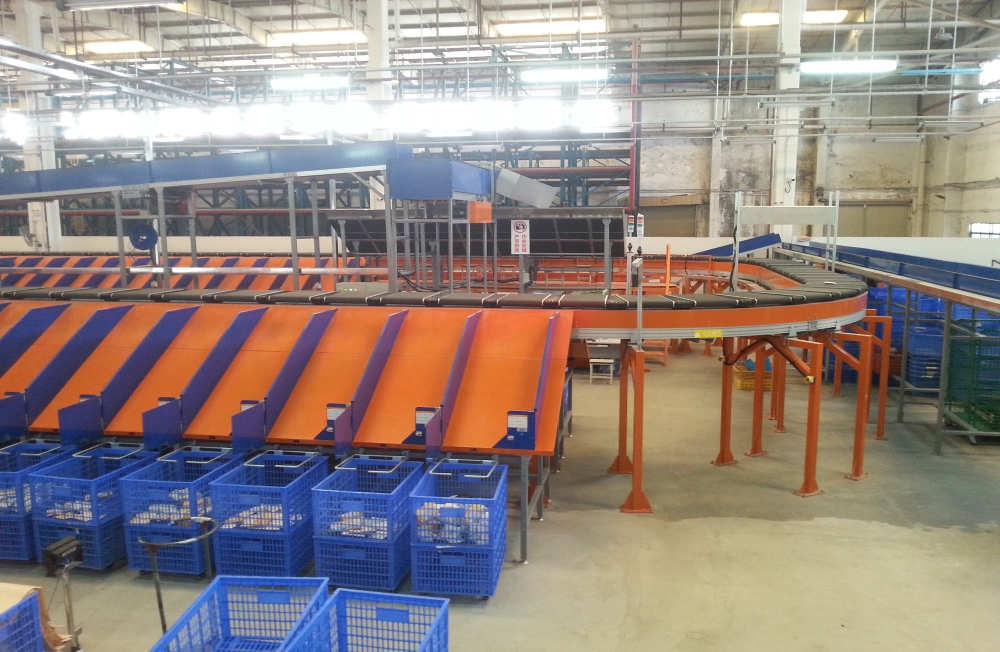

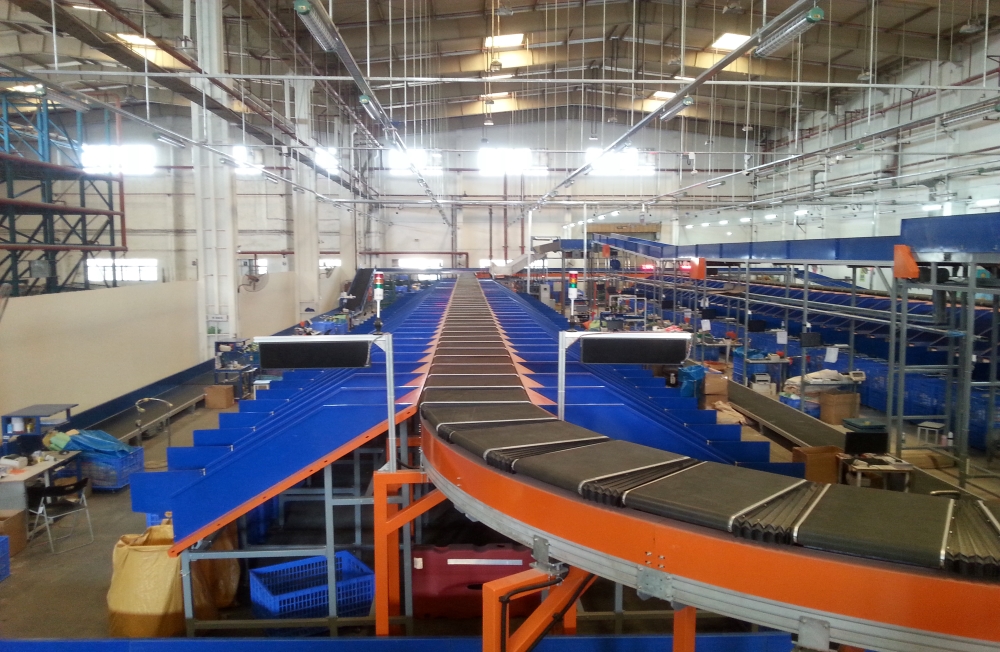

Application Cases of Single-carrier Cross Belt Sorter

Applicable for the sorting of parcels or products in Post, Express, E-commerce, Apparel & Footwear, 3C and other industries; suitable for various block parcels with different sizes, shapes and natures, excluding those with uneven bottom, easy rolling or superlight ones;sorting weight range 20g-30kg.
