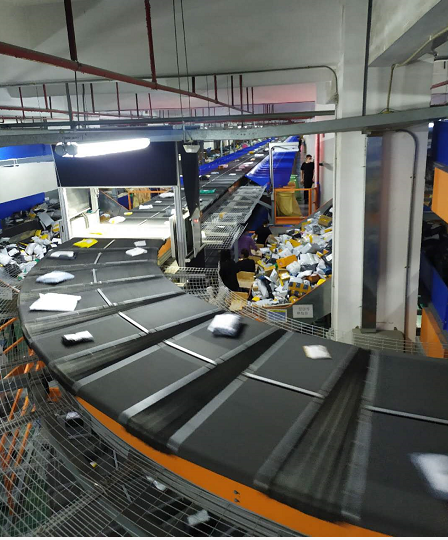

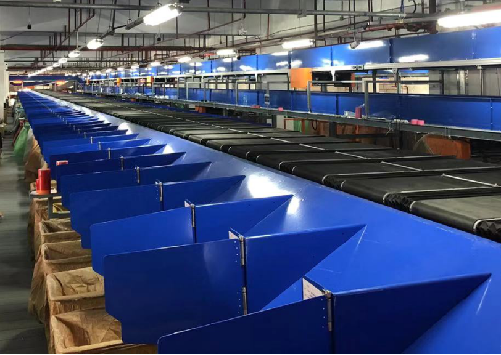

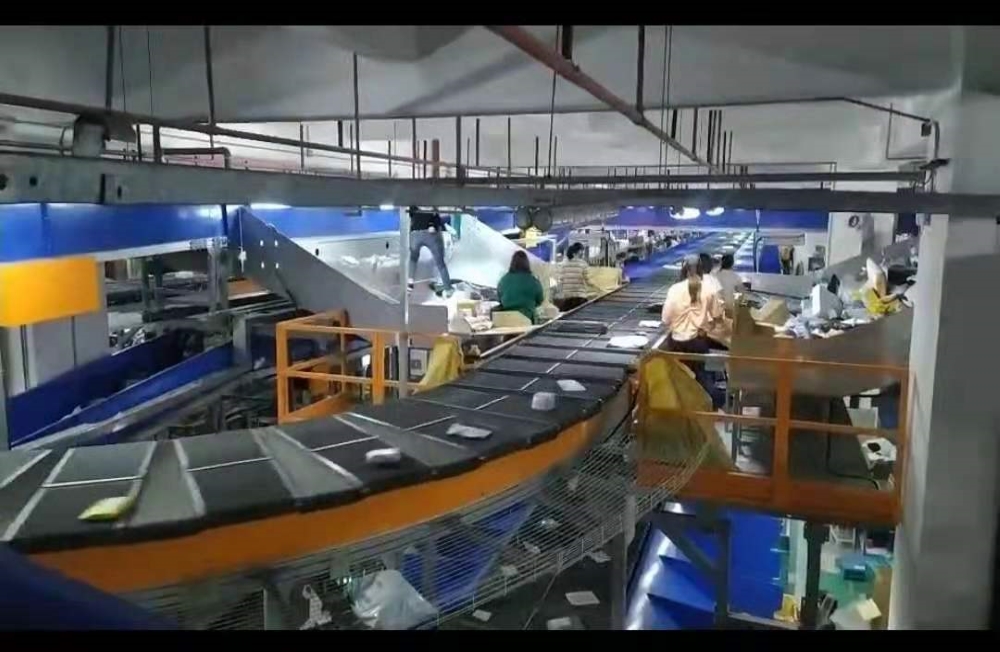

Twin-carrier Cross Belt Sorter

The efficiency of the twin-carrier sorter independently developed and manufactured by Lisen Automation is twice that of the single carrier sorter, with the efficiency up to 18000-48000 pcs per hour. It is widely used in large logistics distribution centers and transfer yards. It adopts servo motor, which has high efficiency, energy saving, high cost performance and low failure rate.


  • Twin-carrier Cross Belt Sorter
  • Twin-carrier Cross Belt Sorter
  • Twin-carrier Cross Belt Sorter
  • Twin-carrier Cross Belt Sorter
  • Twin-carrier Cross Belt Sorter
  • Twin-carrier Cross Belt Sorter

Specification of Twin-carrier Cross Belt Sorter

Parameters of twin-carrier cross belt sorter

No.

Item name

Parameter

Remark

1

Carrier pitch

600MM


2

Carrier size

380*600MM


3

Sorter speed

1.2M/S~2.0M/S

Better not exceed 1.6M/S by manual induction

4

Induction method

Manual, semi automatic, fully automatic

Automatic induction(Min. weight 100g, Min. size 150*100*10mm)

4

Theoretical efficiency

36000pcs/H(1.5M/S)
48000pcs/H(2.0M/S)

Loop line speed*3600seconds/0.6*2(twin-carrier)*2(opposite side chutes 100% reuse)

5

Sorting accuracy

≥99.99%


6

Barcode reading rate

≥99%


7

Chute width

750mm

Width adjusted according to parcel size and loop line speed

8

Parcel size

Max.545mm×350mm×250mm,Min.160mm×80mm×1mm

Support two carriers for one parcel loading(max. parcel size 700*500mm)

9

Parcel weight

20g~30kg

Support two carriers for one parcel loading, max. parcel weight 50kg.

Lisen Automation, as one of logistics automation companies, offers different specifications of twin-carrier sorter.

More details can be achieved by contacting us.


Main parts brand

No.

Main parts

Brand

Remark

1

Carrier belt

SIEGLING、HIGHTEN


2

Electric roller

M&D/WIN Roller


3

Linear motor

SEW synchronous linear motor


4

Barcode reader

Italy Datalogic/Germany SICK/US Cognex/HIKVISION


5

Grayscale test

US BANNER/Italy Datalogic


6

PLC

Siemens


7

Sliding contact line

Germany VAHLE


8

Track

LISEN

Tailored aluminum extrusion


Advantages Of Twin-carrier Cross Belt Sorter

  • The efficiency of this sorting equipment is up to 18000-48000pcs per hour(The sorting efficiency varies from different sorter models, loop line speeds, induction methods and chute reuse rates).

  • Low operation and maintenance cost, low energy consumption, short ROI cycle.

  • This crossbelt sorter is easy to operate and easy to use.

  • Low running noise, average noise less than 70dBA(one meter distance), improving working environment.

  • Manual, semi-automatic, fully automatic 3 induction methods for choosing.

  • Main drive adopts magnetic levitation structure(synchronous linear motor).

  • Automatic deviation rectification, multilateral and beyond edge detection functions.


Advantages Of Twin-carrier Cross Belt Sorter
